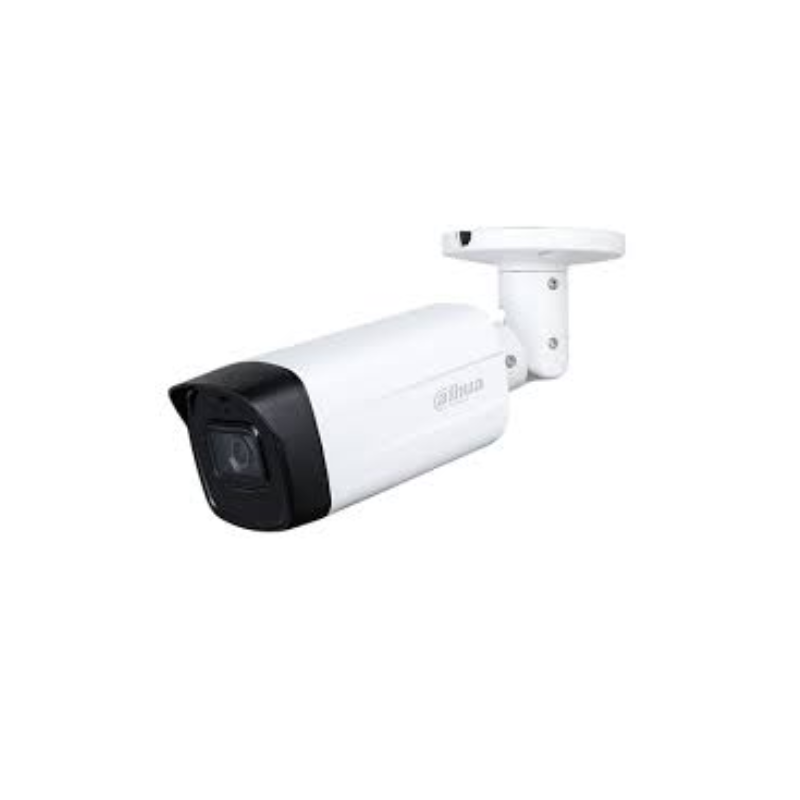

CAMÉRA TUBE DAHUA FULL HD 5MP IR 40

Caméra

Capteur d'image

CMOS 1/2,7 pouces

Pixels efficaces

2592 (H) × 1944 (V), 5MP

Vitesse d'obturation électronique

PAL : 1/25 s–1/100 000 s
NTSC : 1/30 s–1/100 000 s

Éclairage minimal

0.02Lux/F1.85, 30IRE, 0Lux IR activé

Distance IR

Distance jusqu'à 40 m (131,23 pieds)

Commande Marche/Arrêt IR

Auto; manuel

Nombre de LED IR

1

Plage de panoramique/inclinaison/rotation

Panoramique : 0°–360° Inclinaison
: 0°–180°
Rotation : 0°–360°

Lentille

Type de lentille

Focale fixe

Type de montage

M12

Distance focale

2,8 mm; 3,6 mm; 6 millimètres

Max. Ouverture

Q1.85

Angle de vue

2,8 mm : 116° × 93° × 68°

(diagonale × horizontale × verticale)
3,6 mm : 101° × 77,5° × 56,5°

(diagonale × horizontale × verticale)
6 mm : 61° × 49° × 37°

(diagonale × horizontale × verticale)

Type de diaphragme

Diaphragme fixe

Distance photographique minimale

0,9 m/1,4 m/2,8 m (2,95 pi/4,59 pi/9,18 pi)

DORI Distance

Lentille

Détecter

Observer

Reconnaître

Identité

2,8 mm

56,0 m (183,72 pieds)

22,4 m (73,49 pi)

11,2 m (36,74 pi)

5,6 m (18,37 pieds)

3,6 mm

80,0 m (262,46 pieds)

32,0 m (68,89 pieds)

16,0 m (52,49 pieds)

8,0 m (26,24 pieds)

6 millimètres

120,0 m (393,70 pi)

48,0 m (104,98 pi)

24,0 m (78,74 pi)

12,0 m

(39,37 pieds)

Vidéo

Frame rate vidéo

CVI: 5M@20fps; 4M@25fps/30fps; 1080P@25fps/30fps;
AHD: 5M@20fps; 4M@25fps/30fps; 1080P@25fps/30fps;
TVI: 5M@20fps; 4M@25fps/30fps; 1080P@25fps/30fps;
CVBS: 960H

Resolution

5MP (2592 × 1944); 4MP (2560 × 1440); 1080P (1920 × 1080); 960H (960 ×576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Electronic Defog

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Port

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12V±30% DC

Power Consumption

Max 3.6W (12V DC, IR on)

Environment

Operating Temperature

-40°C to +60°C (-40°F to +140°F);

<95% (non-condensation)

Storage Temperature

-40°C to +60°C (-40°F to +140°F);

<95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal front face + plastic main body + metal bracket

Dimensions

240.7 mm × 90.7 mm × 90.4 mm (9.48" × 3.57" × 3.56")

Net Weight

410 g (0.90 lb)

Gross Weight

616 g (1.36 lb)
