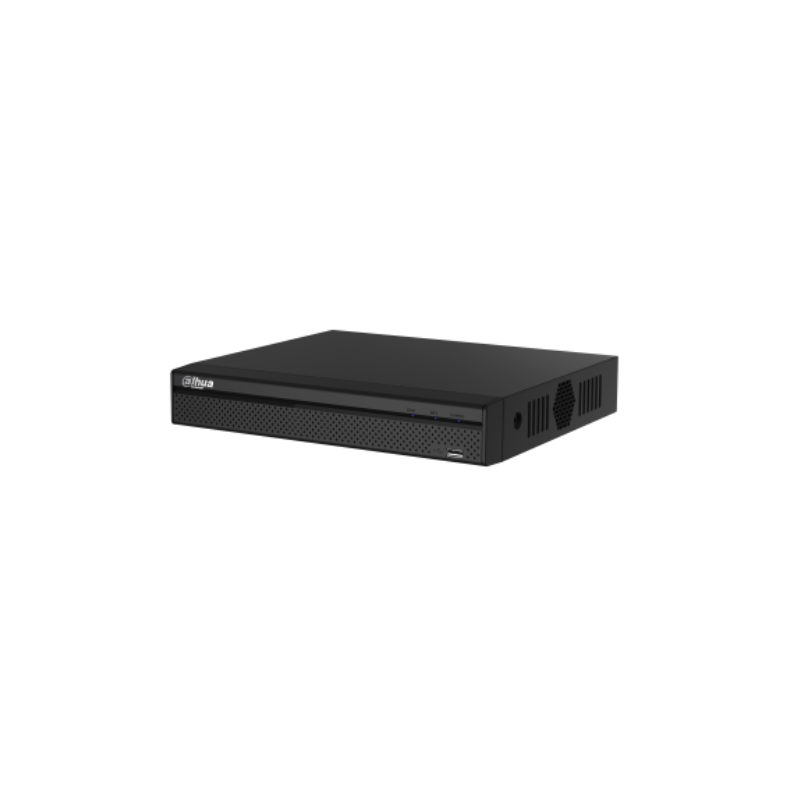

NVR DAHUA 16 ENTREE 4K UP TO 12 MP

0,00 TND
TTC

Ø  Jusqu'à 16 caméras ip en entrée

Ø  H.265/H.264/MJPEG/MPEG4 codec décodage

Ø  Max 320Mbps de bande passante

Ø  Jusqu'à to 12Mp en résolution en vue & relecture

Ø  Max 32ch@1080P H.265/H.264 décodage

Ø  HDMI/VGA sortie vidéo simultanée

Ø  4/8/16 canaux  synchrones relecture temps réel, GRID interface

Ø  Supporte des caméras ip Multi-marques: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.

Ø  ONVIF Version 2.4 conformité

Ø  3D intelligent positionnement avec Dahua PTZ caméra

Ø  Supporte 2 SATA HDDs jusqu'à 12TB, 2 USB(1 USB3.0)

Ø  Supporte IPC UPnP,

Ø  Multiples logiciels de monitoring réseau: Web, CMS(DSS/Smart PSS) & Mobile phone (DMSS).

System
Main Processor Quad-core embedded processor
Operating System Embedded LINUX
Display
Interface 1 HDMI (1 HDMI up to 3840×2160), 1 VGA
Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 8CH: 1/4/8/9
16CH: 1/4/8/9/16
32CH: 1/4/8/9/16/25/36
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input 4 Channel, Low Level Effective, Green Terminal Interface
Relay Output 2 Channel, NO/NC Programmable, Green Terminal Interface
Tracking Trigger Event N/A
Playback and Backup
Sync Playback 8CH: 1/4/9 16/32CH: 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate tosecond)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 2 SATA III Ports, up to 8TB capacity for each HDD
HDD Mode Single
eSATA N/A
SAS N/A
Auxiliary Interface
Front Cover N/A
USB 2 ports (1 Rear USB3.0,1 Front USB2.0)
RS232 1 Port, for PC Communication and Keyboard
RS485 1 Port, for PTZ Control
NVR5216-4KS2

Fiche technique

TECHNOLOGY
IP
RÉSOLUTION
UP TO 12MP
